Description

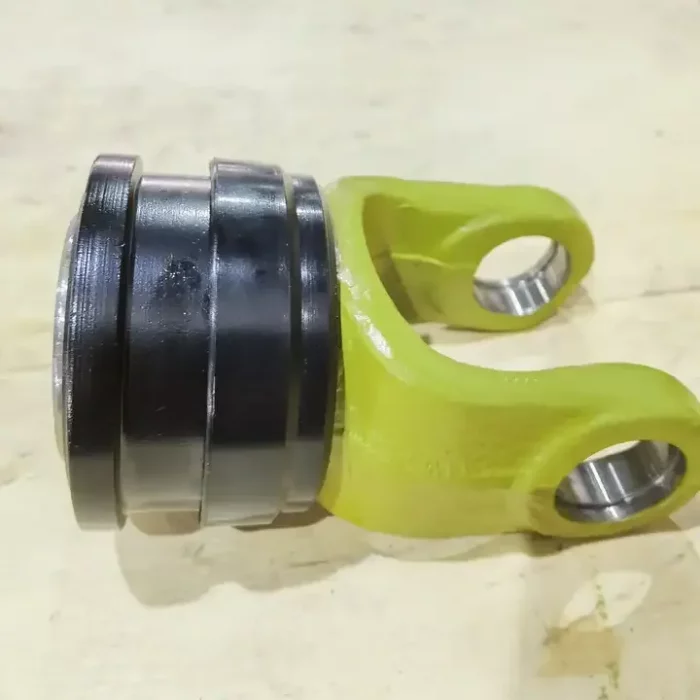

The T4 Series PTO (Power Take-Off) Drive Shaft Splined Yoke with collar is a premium, durable component specifically designed for use with tractors and their implements in robust agricultural settings. Constructed from high-strength forged 1045C steel, this yoke is engineered to withstand the demanding conditions of farming operations while ensuring reliable performance. Finished in a vibrant yellow color, it not only stands out visually but also signifies its quality and durability. This brand new yoke comes with a one-year warranty, providing you with peace of mind and confidence in your investment.
Features of the T4 Series PTO Drive Shaft Splined Yoke
Agricultural Power Take-Off (PTO) shaft yokes are essential components in the machinery utilized for various farming tasks. Understanding the features of these yokes is crucial for their effective use and maintenance. Here are some key attributes of our T4 Series PTO Drive Shaft Splined Yoke:
Types of Yokes
- Tractor Yoke: This component connects the PTO shaft to the tractor, perfectly matching the spline configuration of the tractor’s PTO output. This ensures a secure and efficient power transfer.
- Implement Yoke: Designed to attach the PTO shaft to agricultural implements, this yoke is tailored specifically for the input shaft of the implement, ensuring compatibility and optimal performance.
Spline Count and Size
- Our yokes feature internal splines that are meticulously engineered to match the count and size of the shaft splines they connect to. This precision guarantees a secure fit and efficient power transfer.
- Equipped with a reliable locking mechanism—such as a push-pin or ball-lock system—these yokes firmly attach to the PTO shaft, minimizing the risk of disconnection during operation.
Material and Construction
- Made from robust forged steel, our PTO shaft yokes are designed to endure the significant stress and torque associated with agricultural work. This material choice ensures the yokes can withstand heavy-duty applications.
- Additionally, the yokes are treated to resist corrosion and wear, enhancing their longevity and maintaining performance in harsh environmental conditions.
Safety Features
- Our yokes are compatible with safety shields, which are crucial for preventing accidents. The rotating shaft can pose significant hazards, and having safety features in place is essential for safe operation.
Quick Release Options
- Designed with user convenience in mind, our yokes include a quick-release feature. This allows for easy and rapid attachment or detachment from the tractor or implement, facilitating efficient operation and reducing downtime.
Customization and Compatibility
- We offer a variety of sizes and types of yokes to accommodate different tractors and implements. This ensures broad compatibility across a wide range of agricultural machinery, making it easy to find the right fit for your specific equipment needs.
We are confident that the T4 Series PTO Drive Shaft Splined Yoke serves as an excellent replacement for any damaged components on your PTO shaft system. With its robust construction, thoughtful design features, and commitment to safety, this yoke is an essential addition to your agricultural equipment, ensuring reliable performance and enhanced productivity in your farming operations.
Applications of the T4 Series PTO Drive Shaft Splined Yoke
Agricultural power take-off (PTO) shaft yokes are incredibly versatile components that play a critical role in a wide array of farming operations. They serve as the essential link between the PTO shaft and both the tractor’s power source and the implement’s input shaft, enabling the effective transfer of power and torque necessary for various agricultural tasks. Below are some common applications of our T4 Series PTO Drive Shaft Splined Yoke:
Rotary Mowers
Our PTO shaft yokes are integral to rotary mowers, including brush cutters, finish mowers, and flail mowers. These implements require a reliable and secure connection between the PTO shaft and the mower’s gearbox or driveline. The T4 series yokes facilitate the smooth transfer of power, allowing for efficient cutting of vegetation, whether it be grass, weeds, or thicker brush. A dependable connection ensures that the mower operates at optimal efficiency, providing a clean and precise cut.
Hay Equipment
In the realm of hay production, our PTO shaft yokes are widely utilized in equipment such as balers, hay rakes, hay tedders, and hay mergers. These implements depend on the PTO shaft to power various functions crucial for hay preparation and processing, including baling, raking, tedding, and merging. Our yokes ensure a secure and efficient connection between the tractor and the hay equipment, improving operational reliability and enhancing productivity during the busy hay harvest season.
Tillage Equipment
Our PTO shaft yokes are commonly employed in tillage equipment, such as plows, disc harrows, cultivators, and seeders. These implements require a robust PTO connection to effectively transfer power for ground engagement and soil preparation. The T4 series yokes play a vital role in ensuring efficient power transmission, enabling farmers to prepare their fields for planting while maintaining durability even under demanding conditions. This reliability is essential for achieving optimal soil health and crop yield.
Spreaders
Fertilizer spreaders, manure spreaders, and lime spreaders frequently rely on our PTO shaft yokes to connect the PTO shaft to the spreader’s agitator or spinner mechanism. The yokes facilitate the transfer of power, allowing for even and consistent spreading of materials across the field. This capability not only improves nutrient distribution but also enhances crop productivity by ensuring that essential fertilizers and amendments are applied uniformly, promoting healthy plant growth.
Grain Handling Equipment
In grain handling operations, our PTO shaft yokes are utilized in equipment such as grain augers, grain bins, and grain conveyors. These implements require a reliable connection between the PTO shaft and the equipment’s auger or conveyor system, enabling efficient transfer, loading, and unloading of grain. The T4 series yokes ensure that the machinery operates smoothly, reducing downtime and increasing productivity during critical harvest periods.
Sprayers
Our PTO shaft yokes are also essential for agricultural sprayers, including boom sprayers and tractor-mounted sprayers. These implements rely on the PTO shaft to power the sprayer pump, allowing for precise and uniform application of pesticides, herbicides, and fertilizers. The T4 series yokes ensure a secure connection between the tractor and the sprayer pump, contributing to effective pest and weed management while maximizing the efficacy of chemical applications.
In summary, the T4 Series PTO Drive Shaft Splined Yoke is a vital component in various agricultural applications. Its robust design and reliable performance make it an ideal choice for ensuring efficient operation across a range of farming equipment, ultimately enhancing productivity and effectiveness in agricultural practices.
How to Replace a Yoke on a PTO Shaft
Replacing a PTO (Power Take-Off) shaft yoke is an essential maintenance task for agricultural machinery. The yoke connects the PTO shaft from a tractor to implements such as mowers or balers. If the yoke becomes worn or damaged, it’s critical to replace it to maintain efficient operation and avoid potential machinery breakdowns. Here’s a step-by-step guide on how to replace a PTO shaft yoke:
Step 1: Remove the Old Yoke
- Secure the PTO Shaft: Begin by securing the PTO shaft in a vise or with appropriate supports to keep it stable during the process.
- Identify the Fastener: Locate the fastener (which may be a pin, bolt, or snap ring) that holds the yoke to the shaft. This fastener could be a shear pin or a roll pin, depending on the design.
- Remove the Fastener: Carefully take out the fastener. For pins, you may need to use a hammer and punch to tap them out. If there’s a snap ring, employ snap ring pliers to detach it.
Step 2: Slide Off the Old Yoke
- Remove the Yoke: Once the fastener is removed, slide the old yoke off the shaft. If it feels stuck, apply penetrating oil around the base and gently tap the yoke with a hammer to help loosen it.
Step 3: Prepare the New Yoke
- Check the New Yoke: Before installation, inspect the new yoke for any lubrication points. Apply grease where necessary to ensure smooth operation.
Step 4: Install the New Yoke
- Align the New Yoke: Slide the new yoke onto the shaft, ensuring that it is properly aligned.
- Secure the Yoke: Once the yoke is in place, reinsert the fastener (pin, bolt, or snap ring) to secure the yoke onto the shaft. Make sure it is seated correctly and secure.
Step 5: Lubricate the Yoke
- Apply Grease: Use grease on any fittings of the yoke and the universal joint to promote smooth operation and reduce friction.
Step 6: Reconnect the PTO Shaft
- Reattach the PTO Shaft: Finally, reconnect the PTO shaft to both the tractor and the implement. Ensure that all connections are secure and properly aligned to ensure safe and efficient operation.
By following these steps, you can successfully replace the yoke on your PTO shaft, ensuring reliable performance of your agricultural equipment. Regular maintenance and timely replacements are key to prolonging the lifespan of your machinery.
How to Remove a Yoke from a PTO Shaft
Removing a yoke from a PTO (Power Take-Off) shaft is a task that necessitates careful attention to detail and a strong focus on safety. The yoke acts as a critical connector between the PTO shaft and the tractor or implement, facilitating the transfer of power. Here’s a comprehensive guide on how to effectively remove the yoke from a PTO shaft:
Step 1: Secure the PTO Shaft
- Stabilize the Shaft: Start by securing the PTO shaft in a vise or with appropriate supports. This will keep the shaft steady and prevent any movement while you are working, minimizing the risk of injury and ensuring a smoother removal process.
Step 2: Identify the Fastening Mechanism
- Examine the Yoke: Take a close look at the yoke to determine how it is attached to the shaft. Common fastening mechanisms include:
- Shear Pin: A pin designed to break under excessive load for safety.
- Roll Pin: A hollow pin that requires specific tools for removal.
- Bolt: A threaded fastener that can be removed with a wrench or socket.
- Snap Ring: A circular ring that holds the yoke in place and requires snap ring pliers or a flathead screwdriver for removal.
Step 3: Remove the Fastener
- Use Appropriate Tools: Depending on the type of fastener identified:
- For shear or roll pins, use a punch and hammer to gently tap the pin out. Apply controlled force to avoid damaging surrounding components.
- If it’s a bolt, select the correct wrench or socket and carefully unscrew it, keeping any washers or spacers that may come off.
- For a snap ring, utilize snap ring pliers or a flathead screwdriver to detach it from its groove.
Step 4: Slide Off the Yoke
- Remove the Yoke: After the fastener has been removed, carefully slide the yoke off the end of the PTO shaft. If the yoke is stuck, it may be due to rust or debris accumulation.
- Apply Penetrating Oil: Spray penetrating oil around the base of the yoke and allow it to soak for several minutes. This will help loosen any rust or grime that may be causing it to adhere.
- Gently Tap the Yoke: If it remains stuck, lightly tap around the circumference of the yoke with a hammer to help free it. Be cautious to avoid damaging the yoke or shaft.
Step 5: Inspect and Clean
- Check for Wear or Damage: After successfully removing the yoke, inspect both the shaft and the yoke for any signs of wear, damage, or corrosion. Look for cracks, bends, or excessive play that may indicate a need for replacement.
- Clean Off Contaminants: Use a wire brush, cloth, or compressed air to thoroughly clean any rust, dirt, or debris from the PTO shaft and yoke. This ensures a clean surface for any future installation.
Maintenance and Care of PTO Shaft Yokes
Proper maintenance and care for agricultural PTO (Power Take-Off) shaft yokes are vital to their longevity, reliability, and safe operation. Here are several key maintenance and care tips to keep your PTO shaft yokes in optimal condition:
Regular Inspection
- Perform Visual Checks: Conduct routine visual inspections of the PTO shaft yokes. Look for any signs of wear, damage, or misalignment. Check for cracks, bent components, or excessive play in the yoke.
- Inspect Critical Areas: Pay close attention to the splines, keyways, and locking mechanisms for any indications of wear or damage.
Lubrication
- Ensure Proper Lubrication: Adequate lubrication is essential for the smooth operation of PTO shaft yokes. Follow the manufacturer’s recommendations regarding lubrication intervals and the type of lubricant to use.
- Lubricate Moving Parts: Apply lubricant to the yoke’s moving parts, such as splines, U-joints, and locking devices. Regular lubrication helps reduce friction, prevent corrosion, and extend the life of the yoke.
Cleanliness
- Keep Yokes Clean: Maintain the PTO shaft yokes free from dirt, debris, and agricultural residues. Regularly remove any buildup that can interfere with the yoke’s operation or cause damage.
- Use Appropriate Cleaning Methods: Utilize a brush or compressed air to thoroughly clean the yoke and surrounding areas.
Proper Storage
- Store in a Suitable Environment: When not in use, keep PTO shaft yokes in a clean and dry location. Protect them from moisture, extreme heat, and corrosive substances.
- Apply Protective Coatings: If necessary, apply a thin coat of rust-inhibiting oil or grease to the yoke to prevent corrosion during storage.
Correct Usage
- Adhere to Operating Parameters: Always ensure that PTO shaft yokes are used within their specified operating limits. Avoid exceeding the recommended torque or load capacity.
- Ensure Compatibility: Use yokes only with compatible PTO shafts and implements to prevent premature wear, damage, or failure.
Replace Worn or Damaged Yokes
- Promptly Address Wear and Damage: If significant wear, damage, or signs of failure are noticed in a PTO shaft yoke, it is essential to replace it immediately. Using a damaged yoke can lead to unsafe conditions and further equipment damage.
Proper Alignment
- Ensure Correct Alignment During Installation: Properly align PTO shaft yokes during installation to avoid excessive stress, vibration, or binding. Follow the manufacturer’s instructions to align the yoke with the PTO shaft and the implement’s input shaft.
By following these guidelines for removal and maintenance, you can ensure the efficient and safe operation of your agricultural machinery, prolonging the life of your PTO shaft yokes and enhancing overall productivity.
Why Choose FMP’s Agricultural PTO Shaft Yokes?
FMP Drive Shaft Co., Ltd., based in Hangzhou, Zhejiang City, is a leading manufacturer of agricultural PTO shafts, yokes, and related accessories. With a dedicated team of over 100 employees and a spacious facility exceeding 12,000 square meters, we are well-equipped to produce high-quality and reliable products that meet the evolving demands of modern agriculture.
Our expertise lies in the development, manufacturing, and marketing of a wide range of products, including PTO shafts, agricultural gearboxes, PTO shaft accessories, torque limiters, tubes, adaptors, universal joints, industrial cardan shafts, car driveshafts, and u-joint coupling shafts. All our products are CE, TS/16949, and ISO9001 certified, reflecting our commitment to quality and adherence to our QDP principles: Quality First, Quick Delivery, and Competitive Pricing. Our unwavering dedication to quality and customer satisfaction has earned us an excellent reputation among clients in Europe, America, Asia, Australia, and North America.
As a premier OEM supplier, we collaborate with numerous agricultural implement manufacturers in the domestic market and export our products to over 50 countries across five continents. We invite all partners and customers to visit us and explore opportunities for mutually beneficial, long-term collaborations.
We pride ourselves on professionalism and have obtained international certifications that affirm our commitment to quality. Additionally, we offer customized solutions tailored to your specific needs, and our state-of-the-art production facilities ensure timely delivery of high-quality products. Our comprehensive after-sales services are designed to provide you with the support and assistance you need, further enhancing your experience with FMP.
