Description

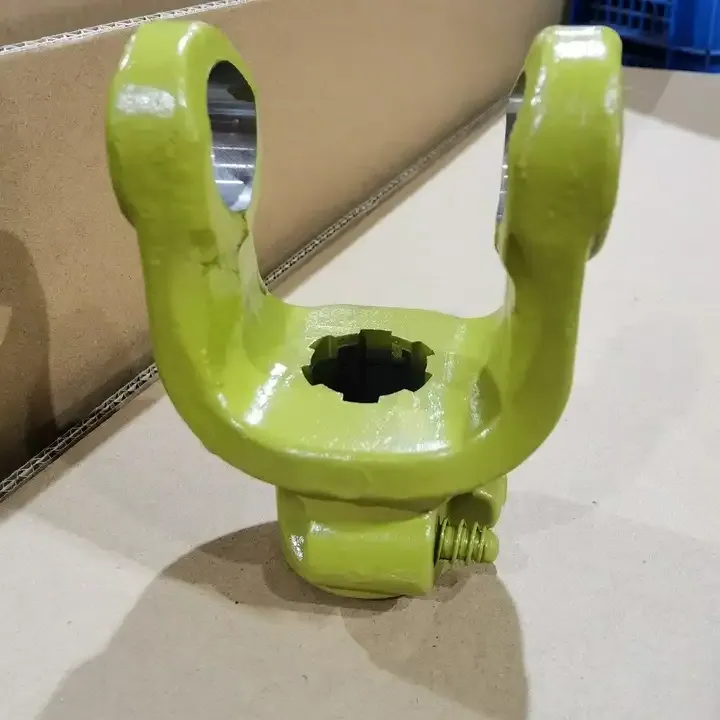

We are excited to present the 34*90 Splined Yoke, an essential component for farm tractor applications. Crafted from durable forged 1045C material, this reliable piece of machinery is designed to perform under the demanding conditions of agricultural work. It is readily available for purchase and comes with a 1-year warranty for your peace of mind.
Key Features of Agricultural Power Take-Off (PTO) Shaft Yokes
When replacing damaged PTO shaft components, it’s important to understand the unique features of PTO shaft yokes. These components play a critical role in various farming operations. Here’s what makes our product exceptional:
Types of Yokes
Our product line includes tractor yokes, which connect the PTO shaft to the tractor, and implement yokes, designed to attach the PTO shaft to agricultural implements.
Spline Count and Size
Each yoke features internal splines that align perfectly with the shaft splines they connect to. We provide a variety of sizes, including configurations of 6, 21, and 1000 splines.
Material and Construction
Our PTO shaft yokes are constructed from robust forged steel, engineered to withstand the stresses and torque associated with agricultural tasks. They are also treated for enhanced corrosion and wear resistance.
Safety Features
Safety is our top priority. Our yokes are designed to be compatible with safety shields, helping to prevent accidents during operation.
Quick Release Options
For added convenience, our yokes come equipped with a quick-release feature, enabling easy and fast attachment or detachment.
Customization and Compatibility
We offer a wide range of sizes and types of yokes to ensure compatibility with various machinery, making it easy to find the perfect fit for your needs.
Applications of PTO Shaft Yokes
Agricultural power take-off (PTO) shaft yokes are essential and versatile components utilized across a wide range of farming operations. They serve as critical connectors between the PTO shaft and both the tractor’s power source and the implement’s input shaft, facilitating the efficient transfer of power and torque. Below are some common applications where PTO shaft yokes play a vital role:
Rotary Mowers
PTO shaft yokes are integral to the functionality of rotary mowers, which include various types such as brush cutters, finish mowers, and flail mowers. These yokes enable the transfer of power from the tractor to the mower blades, allowing for effective cutting of grass, weeds, and other vegetation. The robust design of the yokes ensures durability and reliability in tough mowing conditions.
Hay Equipment
In the realm of hay production, PTO shaft yokes are widely employed in various types of hay equipment. This includes:
- Balers: Yokes connect the baler to the tractor, facilitating the compaction and wrapping of hay into bales for easier handling and storage.
- Hay Rakes: These yokes help in raking hay into windrows, optimizing the drying process before baling.
- Hay Tedders: They assist in aerating and turning hay to promote even drying, ensuring high-quality forage.
- Hay Mergers: Yokes facilitate the merging of multiple windrows into a single row, streamlining the collection process.
Tillage Equipment
PTO shaft yokes are commonly used in various tillage equipment, including:
- Plows: They connect the plow to the tractor, enabling effective soil turning and preparation for planting.
- Disc Harrows: Yokes ensure that power is efficiently transferred for breaking up soil clumps and incorporating organic matter.
- Cultivators: These yokes help in loosening soil and controlling weeds between crop rows, contributing to healthier growth.
- Seeders: PTO shaft yokes are essential for powering seed drills and planters, ensuring accurate seed placement and improved crop yields.
Spreaders
In the application of nutrient distribution, PTO shaft yokes are critical for various types of spreaders:
- Fertilizer Spreaders: They connect the spreader to the tractor, facilitating the even application of fertilizers across fields, enhancing soil fertility.
- Manure Spreaders: Yokes are essential for the effective distribution of manure, promoting soil health and improving crop production.
- Lime Spreaders: These yokes assist in the application of lime to adjust soil pH levels, ensuring optimal growing conditions for crops.
Grain Handling Equipment
PTO shaft yokes are also utilized in various grain handling equipment, such as:
- Grain Augers: They enable the movement of grain from storage bins to transport vehicles, ensuring efficient handling during harvest.
- Grain Bins: Yokes are part of systems that manage the flow of grain into and out of storage facilities.
- Grain Conveyors: They assist in transporting grain over distances, streamlining the handling process and improving operational efficiency.
Sprayers
Finally, PTO shaft yokes find significant application in agricultural sprayers, including:
- Boom Sprayers: They connect the sprayer to the tractor, allowing for the even application of pesticides, herbicides, and fertilizers across large fields.
- Tractor-Mounted Sprayers: These yokes ensure that sprayers operate effectively, providing precise and efficient treatment of crops to protect against pests and diseases.
The versatility of PTO shaft yokes in agricultural applications underscores their importance in modern farming. Their role in connecting various implements to tractors not only enhances operational efficiency but also contributes to the overall productivity of agricultural practices.
How to Replace a Yoke on a PTO Shaft
Replacing a PTO (Power Take-Off) shaft yoke is an essential maintenance task that should not be overlooked. A worn or damaged yoke can lead to inefficient operation and may cause machinery breakdown, which can be costly and time-consuming. Follow this step-by-step guide to effectively replace a PTO shaft yoke and ensure your equipment runs smoothly.
Step 1: Remove the Old Yoke
Begin by securing the PTO shaft to prevent any movement while you work. You can use a vise or sturdy supports to keep the shaft stable. Once the shaft is secured, identify the fastener that holds the yoke to the shaft. This fastener could be a shear pin, roll pin, bolt, or snap ring. Carefully remove the fastener using the appropriate tools:
- For pins, use a punch and hammer to tap them out gently.
- For bolts, use the correct size wrench or socket to unscrew them.
- For snap rings, employ snap ring pliers or a flathead screwdriver to pry them out.
Step 2: Slide Off the Old Yoke
After successfully removing the fastener, attempt to slide the old yoke off the end of the PTO shaft. If the yoke is stuck due to rust or debris, apply some penetrating oil around the base of the yoke and let it soak for a few minutes. Gently tap around the yoke with a hammer to help loosen it. Be cautious to avoid damaging the shaft or the yoke in the process.
Step 3: Prepare the New Yoke
Before installing the new yoke, take a moment to inspect it thoroughly. Check for any lubrication points that require attention. Applying grease to these points before installation is crucial for ensuring smooth operation. Proper lubrication reduces friction and extends the lifespan of the yoke.
Step 4: Install the New Yoke
Carefully slide the new yoke onto the PTO shaft, making sure to align it properly with the splines or keyways. Correct alignment is vital for a secure connection and efficient power transfer. Once the yoke is positioned correctly, reinsert the fastener you removed earlier to secure the yoke onto the shaft. Ensure that the fastener is tightened appropriately to prevent any movement during operation.
Step 5: Lubricate the Yoke
Once the new yoke is installed, apply grease to any grease fittings located on the yoke and the universal joint. This lubrication is essential for facilitating smooth operation and reducing wear on the components. Regular maintenance of lubrication points is necessary for the longevity and performance of the yoke and associated machinery.
Step 6: Reconnect the PTO Shaft
Finally, reconnect the PTO shaft to both the tractor and the implement. Make sure that all connections are secure and properly aligned. Double-check that the yoke is firmly in place and that there are no loose components. Once everything is reconnected, perform a test run to ensure the system operates smoothly without any unusual noises or vibrations.
By following these steps, you can effectively replace the yoke on a PTO shaft, ensuring reliable operation of your agricultural machinery. Regular maintenance, including timely yoke replacement, is vital for preventing breakdowns and ensuring safe operation in the field. Taking the time to perform this task correctly will enhance the performance and longevity of your equipment.
How to Remove a Yoke from a PTO Shaft
Removing a yoke from a PTO (Power Take-Off) shaft is a task that requires careful attention to detail and a focus on safety. Ensuring that this process is performed correctly can prevent damage to the components and enhance the longevity of your machinery. Here’s a step-by-step guide to effectively remove the yoke from a PTO shaft:
Step 1: Secure the PTO Shaft
Begin by securing the PTO shaft to prevent any movement while you work. If possible, place the shaft in a vise or use sturdy supports to hold it steady. This stability is crucial for ensuring safety during the removal process and helps to avoid any accidental injuries or damage to the components.
Step 2: Identify the Fastening Mechanism
Examine the yoke closely to determine how it is attached to the shaft. Common fastening mechanisms include:
- Shear Pins: Designed to break under excessive load, these pins help protect the machinery.
- Roll Pins: These cylindrical pins fit through holes in both the yoke and shaft.
- Bolts: Standard bolts that require unscrewing.
- Snap Rings: Rings that fit into grooves to secure the yoke in place.
Understanding the type of fastener used is critical for the next steps in the removal process.
Step 3: Remove the Fastener
Once you have identified the fastening mechanism, proceed to remove it carefully using the appropriate tools:
- For Shear or Roll Pins: Use a punch tool and hammer to gently tap the pin out of its hole. Be cautious to avoid damaging the surrounding area.
- For Bolts: Use the correct size wrench or socket to unscrew the bolt by turning it counterclockwise. Ensure that you are using the right tool to avoid stripping the bolt head.
- For Snap Rings: Utilize snap ring pliers or a flathead screwdriver to carefully pry the snap ring out of its groove. Take care, as snap rings can spring out unexpectedly.
Step 4: Slide Off the Yoke
After successfully removing the fastener, attempt to slide the yoke off the end of the PTO shaft. If the yoke is stuck due to rust or debris accumulation, apply penetrating oil around the base of the yoke and allow it to soak in for several minutes. This will help loosen any corrosion that may be binding the yoke to the shaft. Gently tap around the yoke with a hammer to assist in freeing it, taking care not to damage the shaft or yoke during this process.
Step 5: Inspect and Clean
Once the yoke has been successfully removed, take this opportunity to inspect both the yoke and the PTO shaft for any signs of wear or damage. Look for:
- Cracks or Deformations: Indicating potential failure points.
- Excessive Wear: Especially on the splines or keyways.
After inspection, clean off any rust, dirt, or debris from both the yoke and the PTO shaft. A wire brush or cloth can be useful for this purpose. Ensuring cleanliness will help prevent future issues when reinstalling or replacing components.
By following these steps, you can effectively and safely remove a yoke from a PTO shaft. This task is crucial for the maintenance and repair of agricultural machinery, ensuring that all components function smoothly and efficiently. Regular inspections and prompt replacements of worn or damaged parts will contribute to the longevity and reliability of your equipment.
Maintenance and Care of PTO Shaft Yokes
Proper maintenance and care of agricultural power take-off (PTO) shaft yokes are essential for ensuring their longevity, reliability, and safe operation. By following these maintenance tips, you can help prevent breakdowns, extend the lifespan of your equipment, and enhance overall performance.
Regular Inspection
Conducting regular visual inspections of PTO shaft yokes is vital. Make it a practice to look for signs of:
- Wear: Check for any unusual wear patterns, especially on the splines and connection points.
- Damage: Look for cracks, deformations, or any visible signs of stress that could compromise the integrity of the yoke.
- Misalignment: Ensure that the yokes are properly aligned with the PTO shaft and the implement to prevent undue stress during operation.
Routine inspections can help catch minor issues before they escalate into major problems.
Lubrication
Proper lubrication is crucial for the smooth operation of PTO shaft yokes. Follow the manufacturer’s recommendations for lubrication intervals, and make sure to:
- Use the appropriate lubricant specified for your yokes. This will help reduce friction between moving parts and minimize wear.
- Regularly check lubrication levels before and after heavy use to ensure optimal performance.
Adequate lubrication not only enhances functionality but also extends the life of the yoke.
Cleanliness
Maintaining cleanliness is essential for the proper functioning of PTO shaft yokes. Keep them free from:
- Dirt and Debris: Accumulated dirt can lead to wear and hinder operation. Regularly remove any buildup around the yokes.
- Agricultural Residues: After use, clean off any residue that may adhere to the yoke. This is particularly important if the equipment has been used in muddy or dusty conditions.
Using compressed air or a soft brush can help keep the yokes clean without damaging them.
Proper Storage
When not in use, store PTO shaft yokes in a clean and dry environment. Consider the following storage tips:
- Indoor Storage: Keeping yokes indoors helps protect them from moisture, extreme temperatures, and corrosive substances.
- Protective Covers: If storing outdoors, use protective covers to shield the yokes from dust and environmental factors.
Proper storage conditions can significantly reduce the risk of corrosion and damage.
Correct Usage
Ensure that PTO shaft yokes are used within their specified operating parameters. This includes:
- Torque Limits: Avoid exceeding the manufacturer’s recommended torque specifications, as this can lead to premature wear or failure.
- Load Capacity: Make sure the yoke is not subjected to loads beyond its designed capacity to prevent damage.
Using the yokes correctly is essential for maintaining their integrity and functionality.
Replace Worn or Damaged Yokes
If you notice significant wear, damage, or signs of failure in a PTO shaft yoke during inspections, it is crucial to replace it promptly. Indicators that replacement is necessary include:
- Visible Cracks: These can compromise the structural integrity of the yoke.
- Excessive Wear: On splines or other critical areas can lead to inefficient power transfer.
- Unusual Noises: Such as grinding or rattling during operation may indicate underlying issues.
Timely replacement is essential for ensuring safety and operational efficiency.
Proper Alignment
During installation, ensure that the PTO shaft yokes are properly aligned. Misalignment can lead to several issues, including:
- Excessive Stress: On the yoke and connected components, which can cause premature failure.
- Vibration: This can lead to further damage over time.
- Inefficient Power Transfer: Misalignment can reduce the effectiveness of the machinery.
Follow the manufacturer’s guidelines for alignment to ensure optimal performance and safety.
By adhering to these maintenance and care tips, you can significantly enhance the performance and durability of your PTO shaft yokes. Regular attention to these details will help prevent breakdowns and costly repairs, ensuring your agricultural machinery operates smoothly and efficiently for years to come.
About FMP
At FMP Drive Shaft Co., Ltd., we specialize in the development, manufacturing, and marketing of a comprehensive range of products, including PTO (Power Take-Off) shafts, agricultural gearboxes, and PTO shaft accessories. Our unwavering commitment to quality has earned us an outstanding reputation among customers across the globe.
Why Choose FMP’s Agricultural PTO Shaft Yokes?
As a leading OEM supplier for numerous agricultural implement factories in the domestic market, we take pride in our ability to deliver high-quality products that meet the diverse needs of our clients. Our focus on quality, prompt delivery, and competitive pricing has led to our certification in CE, TS/16949, and ISO9001, reflecting our adherence to international standards and best practices.
We invite partners and customers to visit us, fostering long-term, mutually beneficial relationships built on trust and reliability.
Our Commitment to Excellence
FMP is dedicated to professionalism and customer satisfaction. Our internationally recognized certifications ensure that our products meet stringent quality criteria. We offer customized solutions tailored to the specifications of our clients, ensuring that every product meets the unique demands of their agricultural applications.
Our advanced production facilities are equipped with the latest technology, allowing us to produce products of the highest quality and reliability. Additionally, we provide exceptional after-sales support, helping our customers maintain optimal performance in their operations.
Your Trusted Partner
Whether you are seeking a tailored solution or a standard product, FMP is your trusted partner in agricultural machinery. We are committed to helping you enhance the efficiency and reliability of your equipment, ensuring successful operations in the field.
